Max Static Load – 2900 kg
Max Rated Load in 1:1 – 630kg
VVVF Power Range: 5,5 … 7,5kW (50Hz) – 6 … 8,2kW (60Hz)
AC2 Power Range: 5,5 … 7,5 kW (50Hz) – 6 … 8,2kW (60Hz)
Traction Sheaves – 480 … 550mm
Gear Ratio – 1/52; 1/43; 1/37
Oil Capability – 4,2l
Gear Weight – 250kg

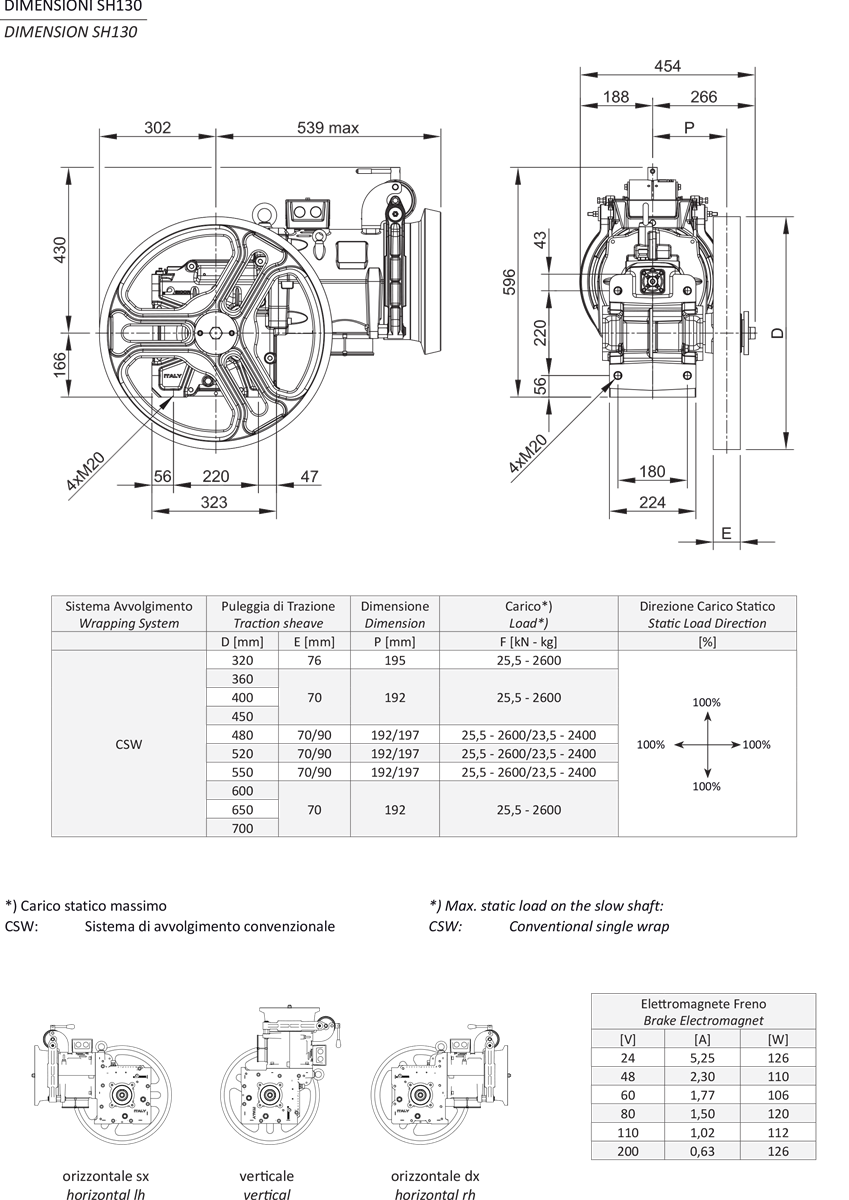

DownloadMax Static Load – 2600 kg
Max Rated Load in 1:1 – 550kg
VVVF Power Range: 2,7 … 7,5kW (50Hz) – 4 … 8,2kW (60Hz)
AC2 Power Range: 2,7 … 5,5 kW (50Hz) – 4 … 6kW (60Hz)
Car Speed – 0,3 … 3,5m/s (50Hz) – 0,4… 4,2m/s (60Hz)
Traction Sheaves – 320 … 700mm
Gear Ratio – 1/52; 1/45; 1/37; 2/53; 2/43; 3/47
Oil Capability – 3,7l
Gear Weight – 250kg (SH130) – 260kg (SH130TS)
